L100S with 65 Reducer Ring

Name: SNAP Fire Collar Cast-in Stack L100S with 65 Reducer Ring | Snap Fire Systems
Availability: InStock

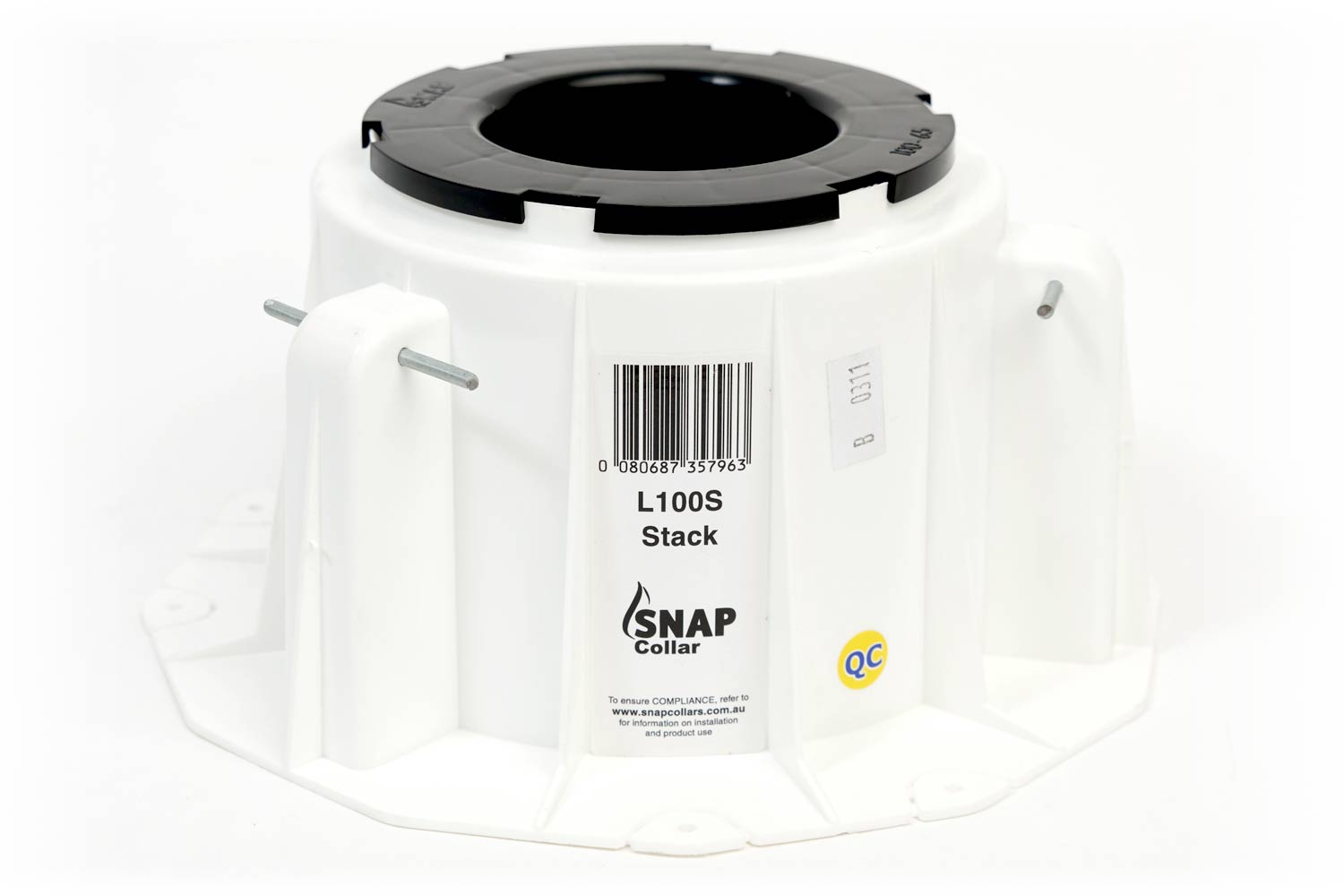

The L100S with 65 Reducer Ring is a low-top, cast-in fire collar for concrete slabs.

Approved for Stack applications only.

The 65 Reducer Ring clips into the L100S low-top cast-in collar to form a tight fit around 65mm pipe.

The 65 Reducer Ring is available on request from SNAP distributors.

For use with a range of pipe types and diameters (See below: click on a report No. to access PDF).

Click Here for Installation Instructions

Click Here for Drawing

Download Revit file here

SKU: N/A Categories: Cast-In Collars, Fire Collars

Documentation

Stack Applications	Dia.	FRL	Report No.
120mm+ Concrete Slab
PVC Pipe	50	-/240/120	FSP2002
150mm+ Concrete Slab
PVC Pipe	65	-/240/240	FCO3426
- w Fitting Inside Collar	65	-/240/240	FCO3426
HDPE Pipe	63	-/240/240	FAR3932

See Page 8 & 9 of FAR3932: Equivalence of L65S-RR and H100S-RR & L100S Collars

Tested in Accordance with AS1530.4 & AS4072.1

NCC Compliant for the Above Uses.

Product Specs

Element	Concrete Slab
Cast-In or Retrofit	Cast-In
Application	Stack
Pipe Type	HDPE, PVC

Purchase Information
