H50FWS

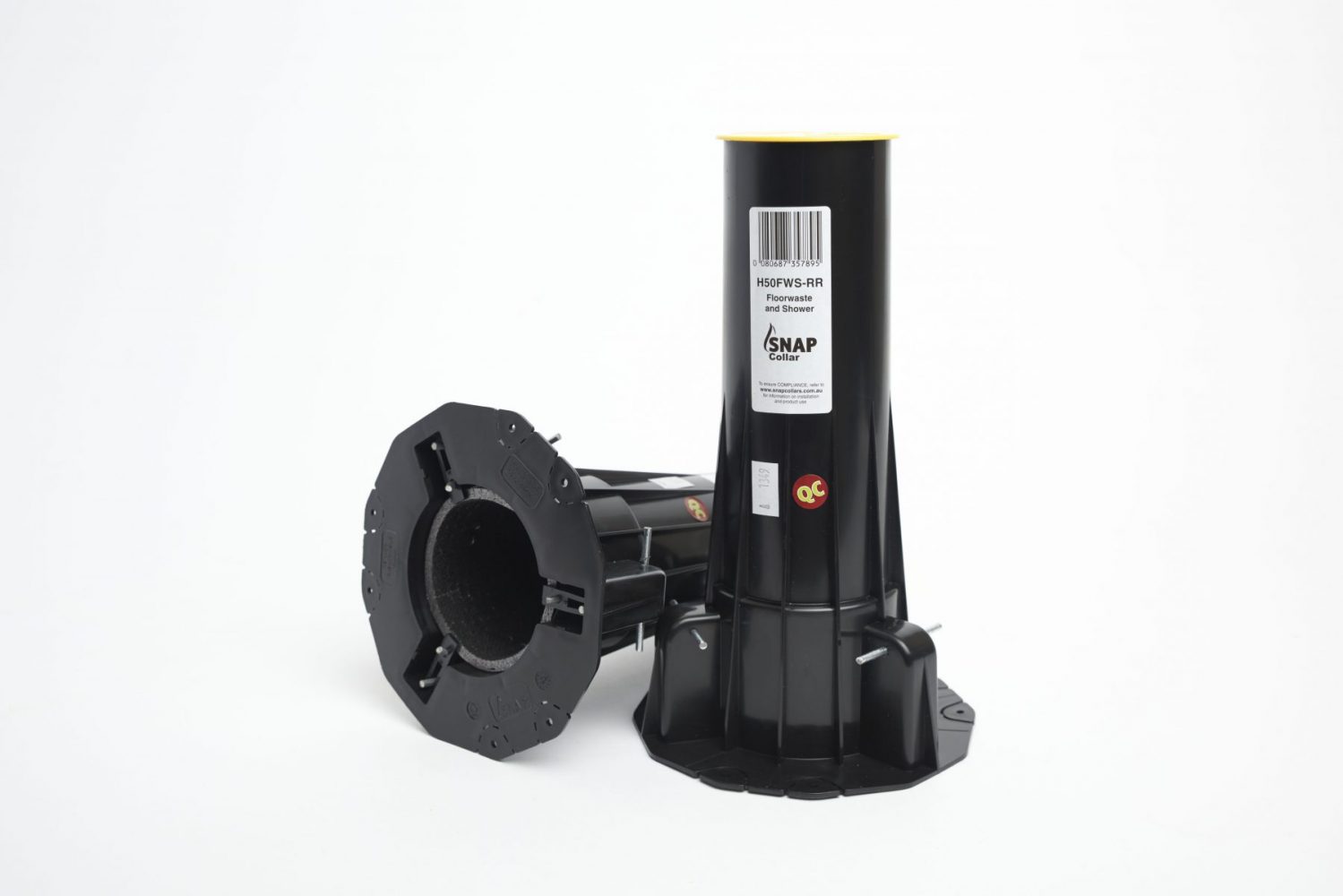

The H50FWS (-RR) is a high-top, cast-in fire collar for concrete slabs.

Approved for Floorwaste and Shower, and Stack applications.

For use with a range of pipe types and diameters (See below: click on a Report No. to access PDF).

Has an internal rubber ring (-RR) that seals against the pipe.

Click Here for Installation Instructions

Click Here for Drawing

Download Revit file here

SKU: N/A Categories: ,

Documentation

Floorwaste and Shower ApplicationsDia.FRLReport No.
150mm+ Concrete Slab
PVC Pipe40, 50-/240/240FCO3426
- w Fitting Inside Collar40, 50-/240/240FCO3426
HDPE Pipe50, 56-/240/240FCO3426
HDPE Pipe40-/240/240FSP1986
Rehau Raupiano Pipe50-/240/240FCO3426
Valsir Triplus Pipe50-/240/180FSP2270
Stack ApplicationsDia.FRLReport No.
150mm+ Concrete Slab
P-PVC Pipe15, 50-/240/240FSP1601
P-PVC Pipe15, 20, 25, 40, 50-/240/240FCO3426
PP-R sdr 7.4 Pipe20, 25, 32, 40, 50-/240/240FCO3426
PE sdr 7.4 Pipe20, 25, 32, 40, 50-/240/240FCO3426
PEX-b Pipe Bundle3 x 25mm *-/180/180FSP1872
PEX-b Pipe Bundle4 x 20mm **-/180/120FSP1872
+GF+ George Fischer Progef Pipe25, 32, 40, 50, 63-/240/240FCO3426
Copper Pair Coil w 10mm Fire-Rated Insulation & Cable3/8 + 3/4 & 10mm 4C+E cable ***-/180/90FSP1872

* See Specimen 2 of FSP1872 for Installation Details

** See Specimen 3 of FSP1872 for Installation Details

*** See Specimen 4 of FSP1872 for Installation Details

See Page 8 & 9 of FAR3932: Equivalence of H50FWS-RR and L50FWS & L40FWS Collars

Tested in Accordance with AS1530.4 & AS4072.1

NCC 2022 Compliant for the Above Uses

Product Specs

Element

Cast-In or Retrofit

Application

,

Pipe Type

, , , , , , ,
