110R

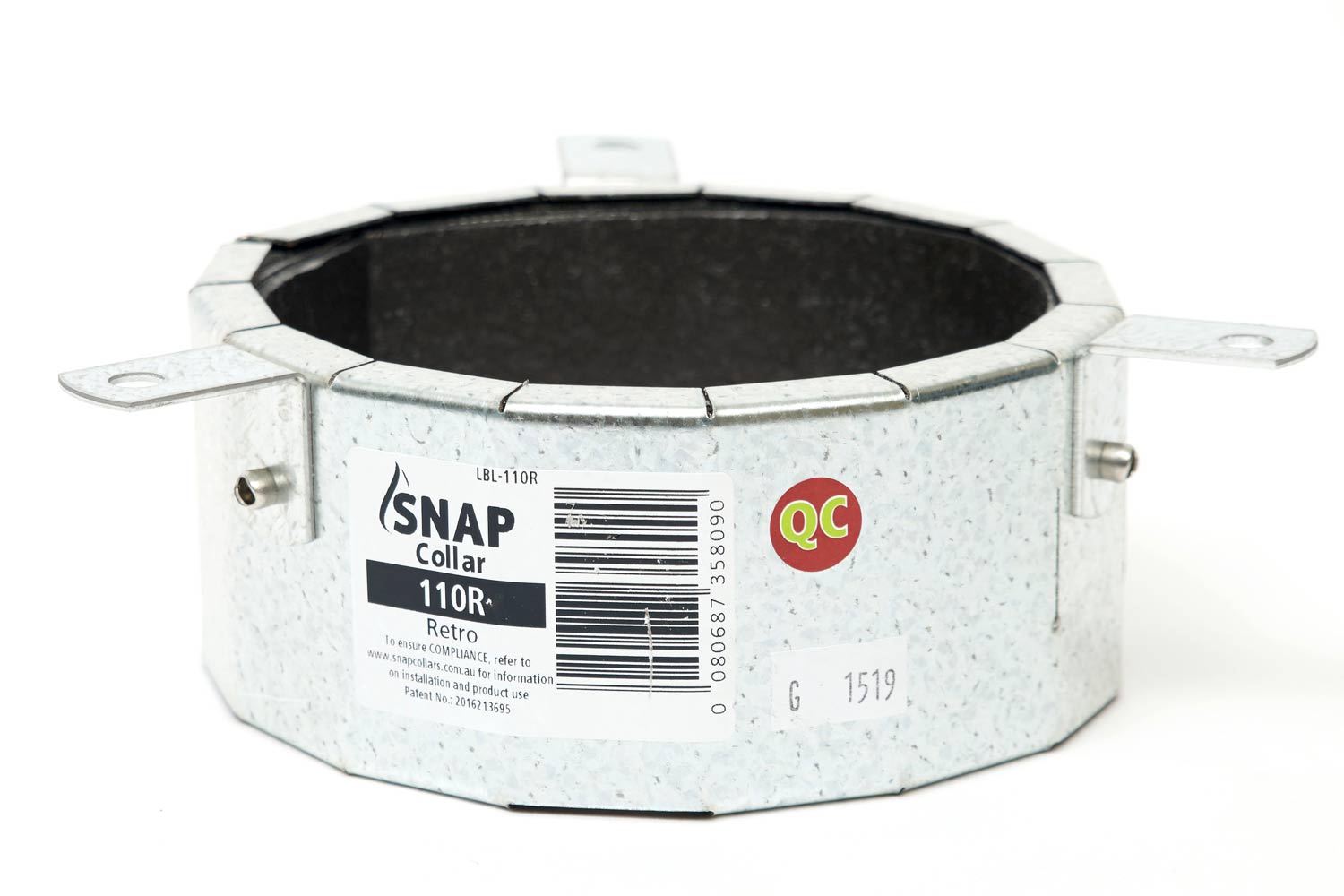

The 110R is a metal, retrofit fire collar for concrete floor slabs, and fire-rated plasterboard, Speedpanel, concrete and masonry walls.

For use with a range of pipe types and diameters (See below: click on a Report No. to access PDF).

N.B. All Fire Resistance Levels (FRLs) achieved on framed plasterboard wall systems are applicable to concrete or masonry walls of equal or greater thickness (AS1530.4: 2014 Section 10.12.2 (c)).

Click Here for Installation Instructions

Click Here for Drawing

Download Revit file here

Click Here for Recommended Fixings Guide

SKU: N/A Categories: ,

Documentation

Stack Applications Dia.FRLReport No.
120mm+ Concrete Slab
Rehau Raupiano Pipe110-/120/90FSP2002
150mm+ Concrete Slab
PVC Pipe90, 100-/240/240FAR3933
- w Fitting Inside Collar90, 100-/240/240FAR3933
P-PVC Pipe100-/240/180FSP2315
HDPE Pipe †††110-/240/240FAR3933
HDPE Pipe90-/240/240FAR3933
Rehau Raupiano Pipe110-/240/180FSP2072
Valsir Triplus Pipe110-/180/180FSP2174
Valsir Triplus Pipe90-/240/240FAR3933
Wall Applications Dia.FRLReport No.
128mm+ Plasterboard Wall *
PVC Pipe90, 100-/180/120FAR3929
- w Fitting Inside Collar90, 100-/180/120FAR3929
HDPE Pipe110-/180/120FAR3929
Rehau Raupiano Pipe110-/180/180FC10394
Rehau Raupiano Pipe90-/180/120FC10394
116mm+ Plasterboard Wall **
PVC (SC) Pipe100-/120/120FSP1748
- w Fitting Inside Collar100-/120/120FSP1996
HDPE Pipe110-/120/120FSP2090
Rehau Raupiano Pipe110-/120/120FSP1996
Valsir Triplus Pipe110-/120/120FSP2238
96mm+ Plasterboard Wall ***
PVC (SC) Pipe100-/90/60FC10395
PVC Pipe100-/90/60FC10395
HDPE Pipe90, 110-/90/60FC10395
90mm+ Plasterboard Wall ****
PVC (SC) Pipe100-/60/60FSP1985
- w Fitting Inside Collar100-/60/60FSP1932
HDPE Pipe110-/60/60FSP2100
Rehau Raupiano Pipe110-/60/60FSP2024
Valsir Triplus Pipe110-/60/60FSP2024
78mm+ Speedpanel Wall
PVC (SC) Pipe 100-/120/90FSV1731††††
FireCrunch MgO Board Wall ††
PVC (SC) Pipe100-/90/90FCO3268
- w Fitting Inside Collar100-/90/90FCO3268
PVC Pipe90-/90/90FCO3268
- w Fitting Inside Collar90-/90/90FCO3268
HDPE Pipe110-/90/90FCO3268
Rehau Raupiano Pipe110-/90/90FCO3268

* 2 x 16mm Fire-rated Plasterboard Sheets Either side of a 64mm Steel Stud

** 2 x 13mm Fire-rated Plasterboard Sheets Either Side of 64mm Steel Stud. For Systems Approved on a 2 x 13mm Fire-rated Plasterboard Sheets One Side of 64mm Steel Stud and 25mm Shaft Liner on the Other, Refer to FCO3348

*** 1 x 16mm Fire-rated Plasterboard Sheets Either Side of a 64mm Steel Stud

**** 1 x 13mm Fire-rated Plasterboard Sheets Either Side of a 64mm Steel Stud

2x13mm Fire-rated Plasterboard Patches on One Side of Wall. See Test Report for Installation Details

†† 1 x 10mm Firecrunch MgO Board Either Side of 90mm Steel Stud. Contact Manufacturer for Wall System Details

††† Can be Used With a Geberit SuperTube BottomTurn Bend Inside the Collar for an FRL of -/240/180. Refer to FSP2116 Pentration 5

 Refer to report in conjunction with FCO3407

Tested in Accordance with AS1530.4 & AS4072.1

NCC 2022 Compliant for the Above Uses
