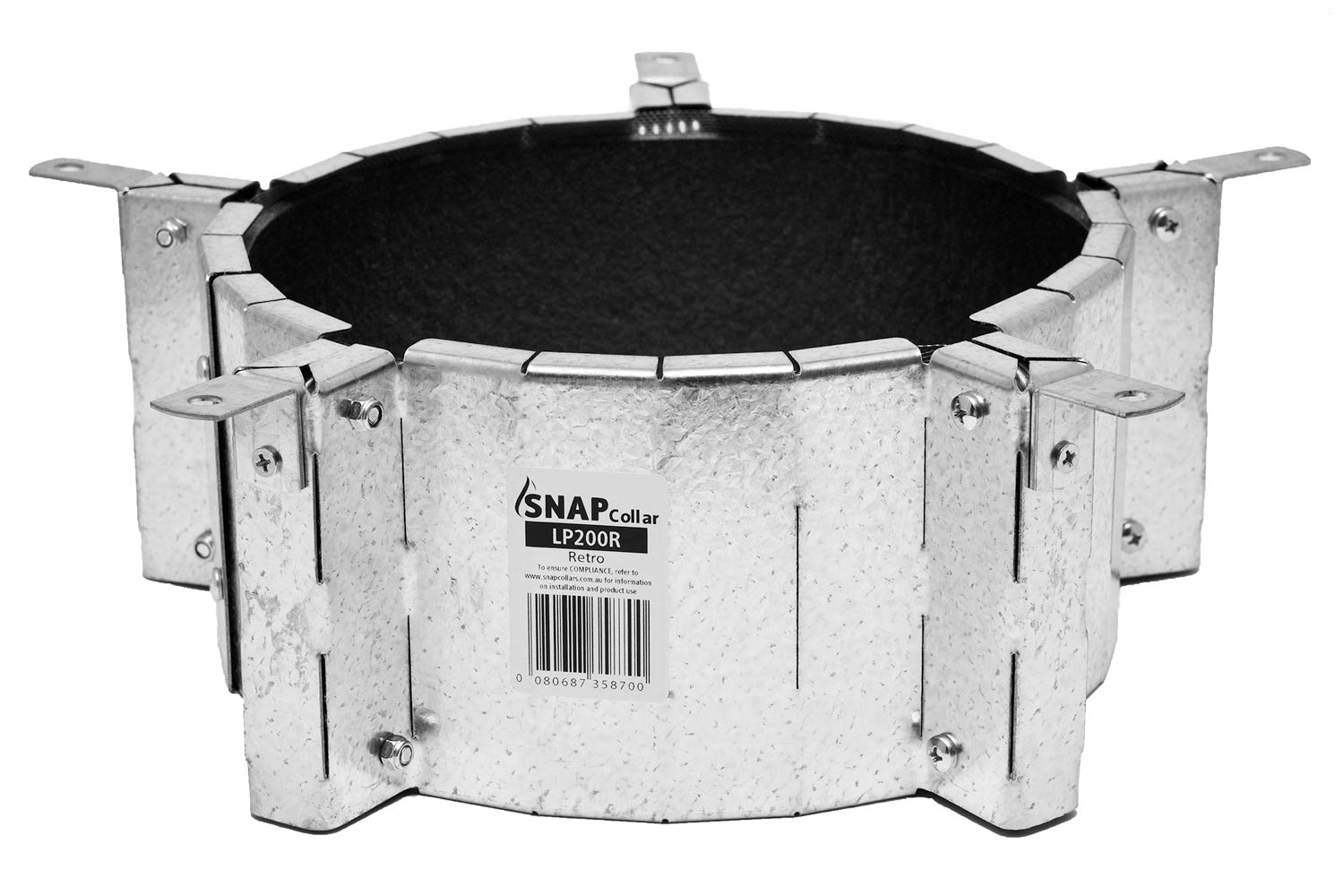

LP200R

The LP200R is a metal, retrofit fire collar suitable for concrete floor slabs.

For use with HDPE pipes of 200m diameter (See below: click on a Report No. to access PDF).

Click Here for Installation Instructions

Click Here for Drawing

Download Revit file here

SKU: N/A Categories: ,

Documentation

150mm+ Concrete Slab
Stack Applications Dia. FRLReport No.
HDPE Pipe200-/180/180FSP1641
Wall Applications Dia. FRLReport No.
116mm+ Plasterboard Wall *
HDPE Pipe200-/120/120FSP2238
Fuseal PP110 Pipe160**-/120/120FSP2275

* 2 x 13mm Fire-rated Plasterboard Sheets Either Side of 64mm Steel Stud.

** Requires 2 Layers of 50mm Rockwool Wrap (Refer to FSP2275 Penetration 1 for Details).

Refer to report in conjunction with FCO3407

Tested in Accordance with AS1530.4 & AS4072.1

NCC 2022 Compliant for the Above Uses
