L100FWS

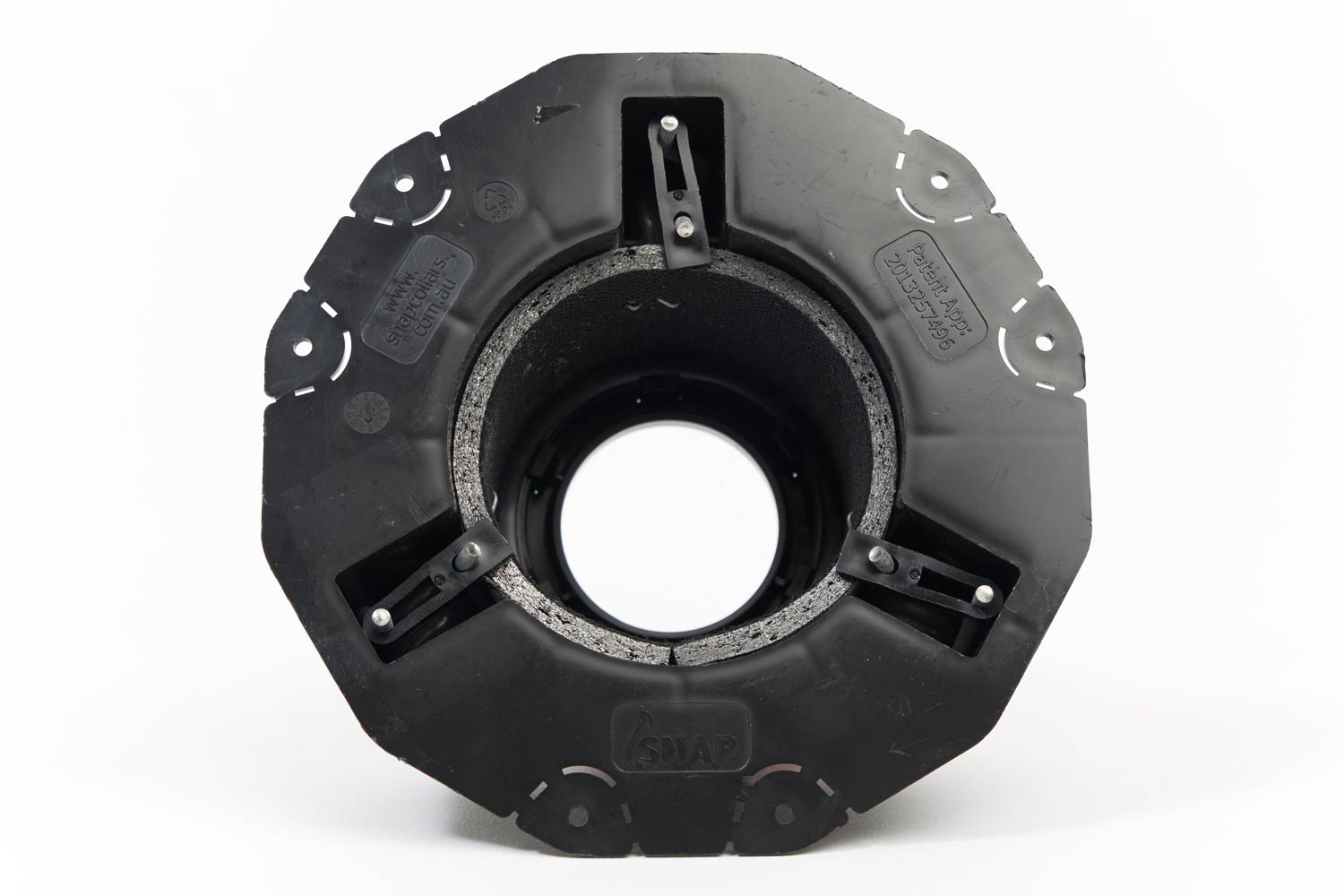

The L100FWS is a low-top, cast-in fire collar for concrete slabs.

Approved for Floorwaste and Shower, and Stack applications.

For use with smaller pipe sizes use the 65 Reducer Ring or the 80 Reducer Ring available on request from SNAP distributors.

For use with a range of pipe diameters (See Below: click on a report No. to access PDF).

Click Here for Installation Instructions

Click Here for Drawing

Download Revit file here

SKU: N/A Categories: ,

Documentation

Floorwaste and Shower ApplicationsDia.FRLReport No.
120mm+ Concrete Slab
PVC (SC) Pipe100
-/120/120
FSP2008
150mm+ Concrete Slab
PVC (SC) Pipe100-/240/240
FCO3426
- w Fitting Inside Collar100-/240/240FCO3426
PVC Pipe50*, 65*, 80**, 100-/240/240FCO3426
- w Fitting Inside Collar50*, 65*, 80**, 100-/240/240FCO3426
HDPE Pipe110-/240/240FCO3426
HDPE Pipe63*, 75**, 90-/240/240FAR3932
HDPE (Silent) Pipe110-/240/240FAR3932
Rehau Raupiano Pipe110-/240/240FCO3426
Rehau Raupiano Pipe75**, 90-/240/240FC12806
Valsir Triplus Pipe110-/240/240FSP1652
Akatherm dBlue Pipe ***110-/240/0
FSP1648
Side of Concrete Beam
PVC (SC) Pipe w Fitting Inside Collar
100-/240/240FCO3426
Stack ApplicationsDia.FRLReport No.
150mm+ Concrete Slab
PP-R sdr 7.4 Pipe50*, 63*, 75**, 90, 110-/180/180FCO3426
PE sdr 7.4 Pipe50*, 63*, 75**, 90, 110-/180/180FCO3426
Rehau Raupiano Pipe w Fitting Inside Collar75**-/240/240FSP1614
+GF+ Coolfit 2.0 Piped63/110-/240/240FSP1891

* For best fit, use the L100FWS with 65 Reducer Ring

** For best fit, use the L100FWS with 80 Reducer Ring

*** Ask Pipe Manufacturer for Installation Instructions

Refer to report in conjunction with FCO3407

See Page 8 & 9 of FAR3932: Equivalence of L100FWS and L65FWS, L80FWS & H100FWS-RR Collars

Tested in Accordance with AS1530.4 & AS4072.1

NCC 2022 Compliant for the Above Uses
