HP250R-B

The HP250R-B is a metal, retrofit fire collar for concrete floor slabs, fire rated plasterboard, concrete and masonry walls.

For use with a range of pipe types (See below: click on a Report No. to access PDF).

N.B. All Fire Resistance Levels (FRLs) achieved on framed plasterboard wall systems are applicable to concrete or masonry walls of equal or greater thickness (AS1530.4 Section 10.12.2 (c)).

Click Here for Installation Instructions

Click Here for Drawing

Download Revit file here

SKU: N/A Categories: ,

Documentation

Stack Applications Dia.FRLReport No.
150mm+ Concrete Slab

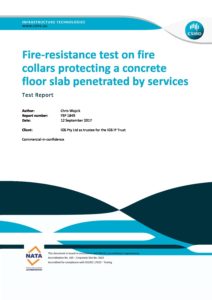

PVC Pipe225-/240/240FSP1849
HDPE Pipe250-/180/180FSP1692 ††
Wall Applications Dia.FRLReport No.
116mm+ Plasterboard Wall *
PVC Pipe225-/120/120FSP1978
HDPE Pipe250-/120/120FSP2040
FireCrunch MgO Board Wall
PVC Pipe225-/90/90FCO3268
HDPE Pipe250-/90/90FCO3268
150mm+ Hebel Block Wall
PVC Pipe225-/180/180FSP1668 ††

* 2 x 13mm Fire-rated Plasterboard Sheets Either Side of 64mm Steel Stud. For Systems Approved on a 2 x 13mm Fire-rated Plasterboard Sheets One Side of 64mm Steel Stud and 25mm Shaft Liner on the Other, Refer to FCO3348

1 x 10mm Firecrunch MgO Board Either Side of 90mm Steel Stud. Contact Manufacturer for Wall System Details

 Refer to report in conjunction with FCO3407

Tested in Accordance with AS1530.4 & AS4072.1

NCC 2022 Compliant for the Above Uses

Print Friendly, PDF & Email

Product Specs

Element

, , , , , ,

Cast-In or Retrofit

Application

,

Pipe Type

, ,
